AMR4100

In Stock: 50

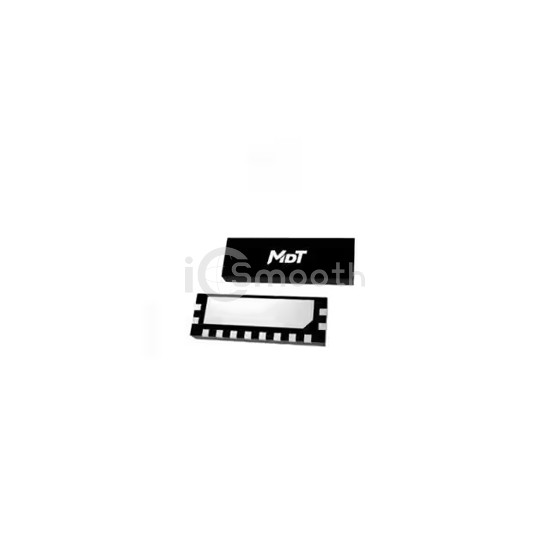

AMR4100 - MDT - Position Sensors - Angle, Linear Position Measuring
REF: AMR4100 MDT
AMR4100

MDT

AMR SENSOR ANGLE ON/OFF AXIS

AMR4100 is a Position Sensors - Angle, Linear Position Measuring manufactured by MDT. AMR SENSOR ANGLE ON/OFF AXIS. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 5V, package / case 12-WDFN Exposed Pad.

Request a Quote

In Stock: 50

Tiered Pricing USD
5+ $2.9500 —
100+ $2.8500 -3%
300+ $2.8000 -5%
1,000+ $2.7500 -7% BEST

Specifications

17 parameters
Product StatusActive
For MeasuringAngle, Linear
TechnologyMagnetoresistive
Rotation Angle - Electrical, Mechanical-
Linear Range-
OutputAnalog Voltage
Output SignalCosine, Sine
Actuator TypeExternal Magnet, Not Included
Linearity-
Resistance2.7 kOhms
Resistance Tolerance-
Voltage - Supply5V
Mounting TypeSurface Mount
Termination StyleSMD (SMT) Tab
Operating Temperature-40°C ~ 125°C (TA)
Package / Case12-WDFN Exposed Pad
Supplier Device Package12-DFN (6x2)
