AMR3013P

In Stock: 100

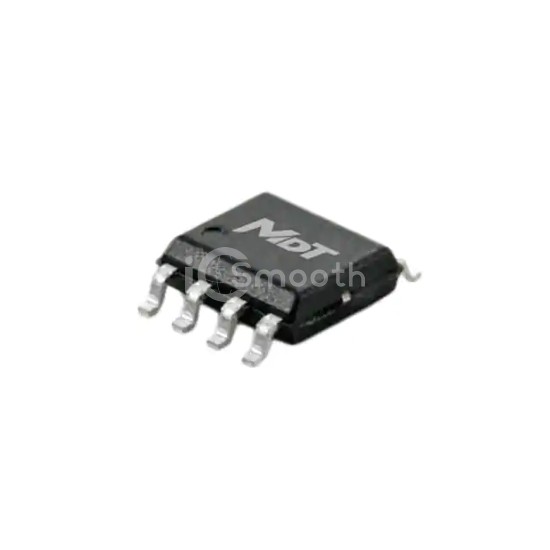

AMR3013P - MDT - Position Sensors - Angle, Linear Position Measuring
REF: AMR3013P MDT
AMR3013P

MDT

AMR SENSOR ANGLE DUAL 180DEG

AMR3013P is a Position Sensors - Angle, Linear Position Measuring manufactured by MDT. AMR SENSOR ANGLE DUAL 180DEG. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 0V ~ 18V, package / case 8-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 100

Specifications

17 parameters
Product StatusActive
For MeasuringAngle, Rotary
TechnologyMagnetoresistive
Rotation Angle - Electrical, Mechanical0° ~ 180°
Linear Range-
OutputWheatstone Bridge
Output SignalCosine, Sine
Actuator TypeExternal Magnet, Not Included
Linearity-
Resistance4.2 kOhms
Resistance Tolerance-
Voltage - Supply0V ~ 18V
Mounting TypeSurface Mount
Termination StyleSMD (SMT) Tab
Operating Temperature-40°C ~ 125°C (TA)
Package / Case8-SOIC (0.154", 3.90mm Width)
Supplier Device Package8-SOP
