Name: SI2301S-2.3A
Brand: MDD
SKU: SI2301S-2.3A
Price: 0.20 USD
Availability: InStock

REF: SI2301S-2.3A MDD

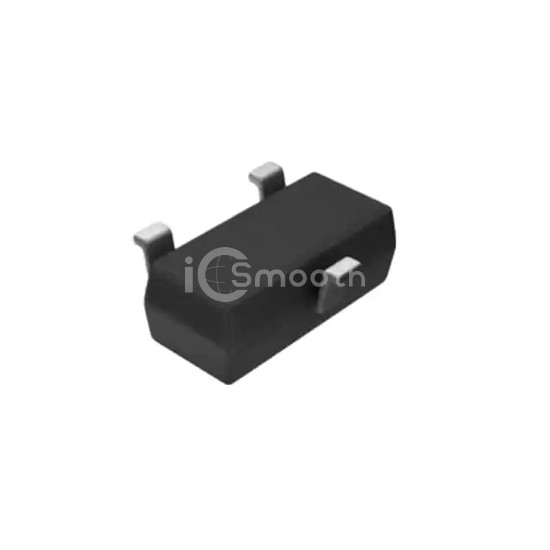

SI2301S-2.3A

MOSFET SOT-23 P Channel 20V

SI2301S-2.3A is a Transistors - FETs, MOSFETs - Single manufactured by MDD. MOSFET SOT-23 P Channel 20V. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C, package / case TO-236-3, SC-59, SOT-23-3.

Datasheet Request a Quote

In Stock: 534,000

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	3.3V, 4.5V
Rds On (Max) @ Id, Vgs	90mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	6.6 nC @ 10 V

Vgs (Max)	±10V
Input Capacitance (Ciss) (Max) @ Vds	330 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	225mW (Ta)
Operating Temperature	-55°C ~ 150°C
Mounting Type	Surface Mount
Supplier Device Package	SOT-23
Package / Case	TO-236-3, SC-59, SOT-23-3
