Name: AO3400-5.8A
Brand: MDD
SKU: AO3400-5.8A
Price: 0.42 USD
Availability: InStock

REF: AO3400-5.8A MDD

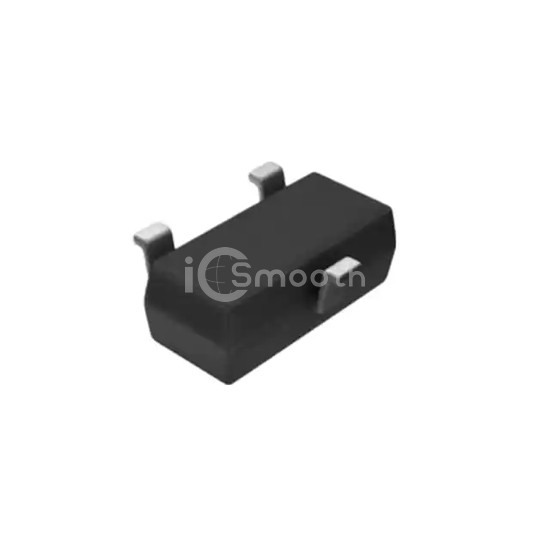

AO3400-5.8A

MOSFET SOT-23 N Channel 30V

AO3400-5.8A is a Transistors - FETs, MOSFETs - Single manufactured by MDD. MOSFET SOT-23 N Channel 30V. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-236-3, SC-59, SOT-23-3.

Datasheet Request a Quote

In Stock: 249,000

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	5.8A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	3.3V, 4.5V
Rds On (Max) @ Id, Vgs	32mOhm @ 5.8A, 10V
Vgs(th) (Max) @ Id	1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	10.5 nC @ 15 V

Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	630 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	1.5W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-23
Package / Case	TO-236-3, SC-59, SOT-23-3
