Name: 2N7002K
Brand: MDD
SKU: 2N7002K
Price: 0.13 USD
Availability: InStock

REF: 2N7002K MDD

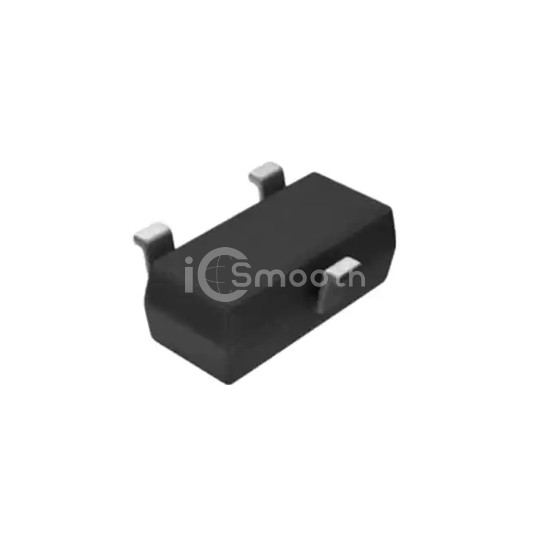

2N7002K

MOSFET SOT-23 N Channel 60V

2N7002K is a Transistors - FETs, MOSFETs - Single manufactured by MDD. MOSFET SOT-23 N Channel 60V. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C, package / case TO-236-3, SC-59, SOT-23-3.

Datasheet Request a Quote

In Stock: 792,000

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	500mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	900mOhm @ 300mA, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	0.31 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	23.8 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	500mW (Ta)
Operating Temperature	-55°C ~ 150°C
Mounting Type	Surface Mount
Supplier Device Package	SOT-23
Package / Case	TO-236-3, SC-59, SOT-23-3
