Name: OCP-PCP116-TR
Brand: Lumex Opto/Components Inc.
SKU: OCP-PCP116-TR
Availability: InStock

REF: OCP-PCP116-TR Lumex Opto/Components Inc.

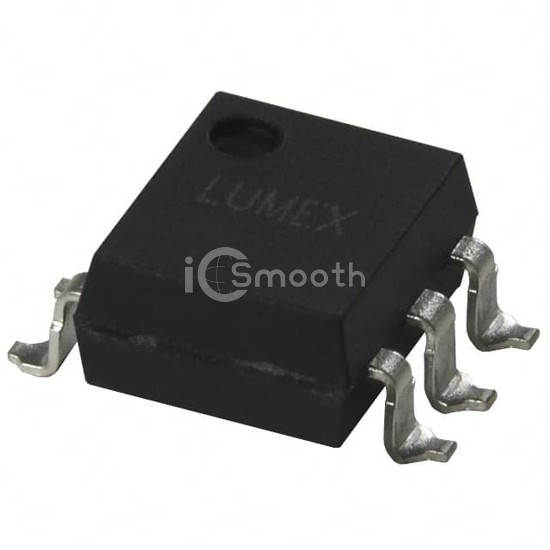

OCP-PCP116-TR

OPTOISO 5KV OPEN COLLECTOR 6SMD

OCP-PCP116-TR is a Optoisolators - Logic Output manufactured by Lumex Opto/Components Inc.. OPTOISO 5KV OPEN COLLECTOR 6SMD. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 85°C, voltage - supply 4.5V ~ 17V, package / case 6-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 1,780

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Inputs - Side 1/Side 2	1/0
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	-
Input Type	DC
Output Type	Open Collector
Current - Output / Channel	50 mA
Data Rate	-

Propagation Delay tpLH / tpHL (Max)	9µs, 15µs
Rise / Fall Time (Typ)	100ns, 50ns
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	50mA
Voltage - Supply	4.5V ~ 17V
Operating Temperature	-25°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	6-SMD, Gull Wing
Supplier Device Package	6-SMD
