OCP-PCP116

In Stock: 2,623

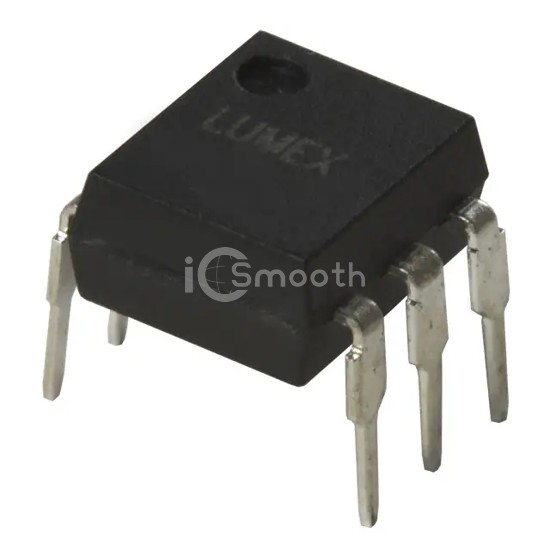

OCP-PCP116 - Lumex Opto/Components Inc. - Optoisolators - Logic Output
REF: OCP-PCP116 Lumex Opto/Components Inc.
OCP-PCP116

Lumex Opto/Components Inc.

OPTOISO 5KV OPEN COLLECTOR 6DIP

OCP-PCP116 is a Optoisolators - Logic Output manufactured by Lumex Opto/Components Inc.. OPTOISO 5KV OPEN COLLECTOR 6DIP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - supply 4.5V ~ 17V, package / case 6-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 2,623

Specifications

18 parameters
Product StatusActive
Number of Channels1
Inputs - Side 1/Side 21/0
Voltage - Isolation5000Vrms
Common Mode Transient Immunity (Min)-
Input TypeDC
Output TypeOpen Collector
Current - Output / Channel50 mA
Data Rate-
Propagation Delay tpLH / tpHL (Max)9µs, 15µs
Rise / Fall Time (Typ)100ns, 50ns
Voltage - Forward (Vf) (Typ)1.2V
Current - DC Forward (If) (Max)50mA
Voltage - Supply4.5V ~ 17V
Operating Temperature-25°C ~ 85°C
Mounting TypeThrough Hole
Package / Case6-DIP (0.300", 7.62mm)
Supplier Device Package6-DIP
