Name: LTV-M601
Brand: Lite-On Inc.
SKU: LTV-M601
Price: 1.58 USD
Availability: InStock

REF: LTV-M601 Lite-On Inc.

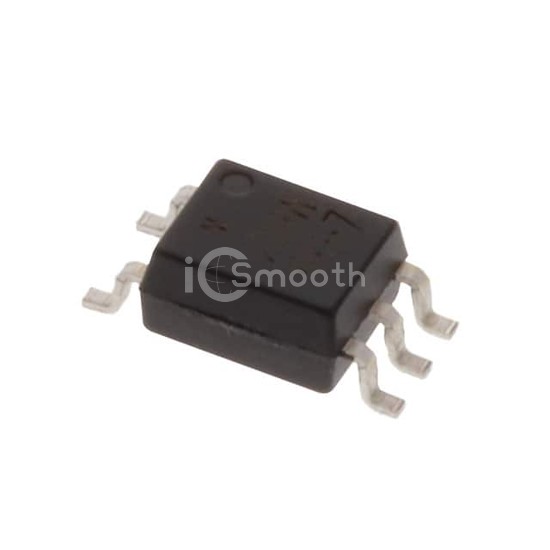

LTV-M601

OPTOCOUPLER HS PHOTO TRANS 5SOP

LTV-M601 is a Optoisolators - Logic Output manufactured by Lite-On Inc.. OPTOCOUPLER HS PHOTO TRANS 5SOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 2.7V ~ 3.6V, 4.5V ~ 5.5V, package / case 6-SOIC (0.173", 4.40mm Width), 5 Leads.

Datasheet Request a Quote

In Stock: 3,238

Tiered Pricing USD

1+ $1.5800 —

10+ $1.1210 -29%

100+ $0.8454 -46%

500+ $0.7235 -54%

1,000+ $0.6837 -57% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Inputs - Side 1/Side 2	1/0
Voltage - Isolation	3750Vrms
Common Mode Transient Immunity (Min)	10kV/µs
Input Type	DC
Output Type	Open Collector, Schottky Clamped
Current - Output / Channel	50 mA
Data Rate	15MBd

Propagation Delay tpLH / tpHL (Max)	75ns, 75ns
Rise / Fall Time (Typ)	21ns, 7ns
Voltage - Forward (Vf) (Typ)	1.38V
Current - DC Forward (If) (Max)	20mA
Voltage - Supply	2.7V ~ 3.6V, 4.5V ~ 5.5V
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package	5-SOP
