Name: 6N137S
Brand: Lite-On Inc.
SKU: 6N137S
Price: 0.83 USD
Availability: InStock

REF: 6N137S Lite-On Inc.

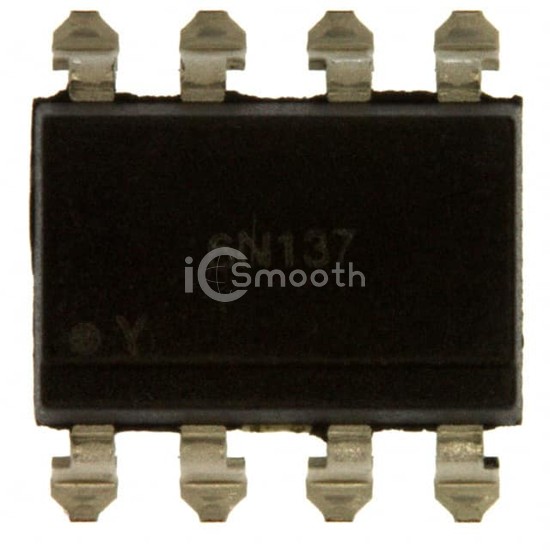

6N137S

OPTOISO 5KV 1CH OPEN COLL 8SMD

6N137S is a Optoisolators - Logic Output manufactured by Lite-On Inc.. OPTOISO 5KV 1CH OPEN COLL 8SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 7V, package / case 8-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 118,469

Tiered Pricing USD

1+ $0.8300 —

10+ $0.5750 -31%

100+ $0.4215 -49%

500+ $0.3528 -57%

1,000+ $0.3302 -60%

2,000+ $0.3111 -63%

5,000+ $0.2902 -65%

10,000+ $0.2771 -67%

25,000+ $0.2629 -68% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Inputs - Side 1/Side 2	1/0
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	10kV/µs
Input Type	DC
Output Type	Open Collector
Current - Output / Channel	50 mA
Data Rate	15MBd

Propagation Delay tpLH / tpHL (Max)	75ns, 75ns
Rise / Fall Time (Typ)	22ns, 6.9ns
Voltage - Forward (Vf) (Typ)	1.38V
Current - DC Forward (If) (Max)	20mA
Voltage - Supply	7V
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	8-SMD, Gull Wing
Supplier Device Package	8-SMD
