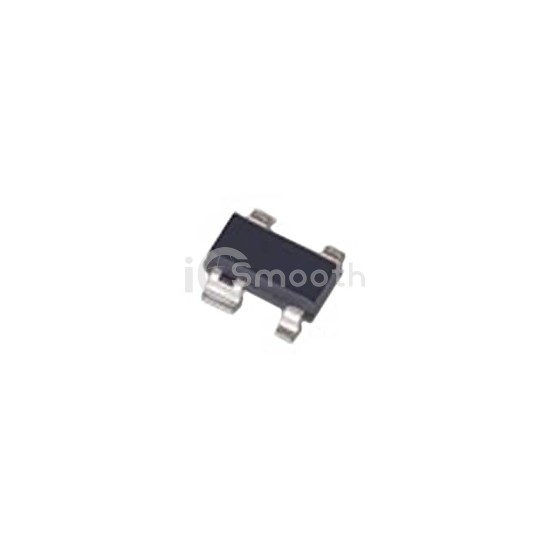

Name: SST214 SOT-143 4L
Brand: Linear Integrated Systems, Inc.
SKU: SST214 SOT-143 4L
Price: 3.50 USD
Availability: InStock

REF: SST214 SOT-143 4L Linear Integrated Systems, Inc.

SST214 SOT-143 4L

Linear Integrated Systems, Inc.

HIGH SPEED N-CHANNEL LATERAL DMO

SST214 SOT-143 4L is a Transistors - FETs, MOSFETs - Single manufactured by Linear Integrated Systems, Inc.. HIGH SPEED N-CHANNEL LATERAL DMO. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), package / case TO-253-4, TO-253AA.

Datasheet Request a Quote

In Stock: 950

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	50mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	5V, 25V
Rds On (Max) @ Id, Vgs	50Ohm @ 1mA, 10V
Vgs(th) (Max) @ Id	1.5V @ 1µA
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	±40V
Input Capacitance (Ciss) (Max) @ Vds	-
FET Feature	-
Power Dissipation (Max)	300mW (Ta)
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-143-4
Package / Case	TO-253-4, TO-253AA
