Name: SD210DE TO-72 4L
Brand: Linear Integrated Systems, Inc.
SKU: SD210DE TO-72 4L
Price: 8.35 USD
Availability: InStock

REF: SD210DE TO-72 4L Linear Integrated Systems, Inc.

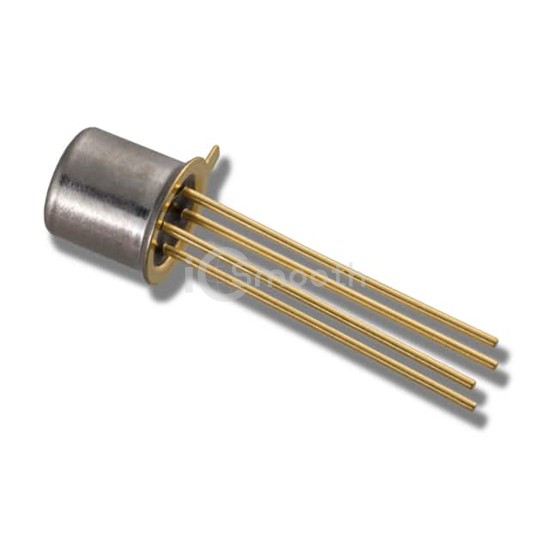

SD210DE TO-72 4L

Linear Integrated Systems, Inc.

HIGH SPEED N-CHANNEL LATERAL DMO

SD210DE TO-72 4L is a Transistors - FETs, MOSFETs - Single manufactured by Linear Integrated Systems, Inc.. HIGH SPEED N-CHANNEL LATERAL DMO. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TJ), package / case TO-206AF, TO-72-4 Metal Can.

Datasheet Request a Quote

In Stock: 505

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	50mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	5V, 25V
Rds On (Max) @ Id, Vgs	45Ohm @ 1mA, 10V
Vgs(th) (Max) @ Id	1.5V @ 1µA
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	±40V
Input Capacitance (Ciss) (Max) @ Vds	-
FET Feature	-
Power Dissipation (Max)	300mW (Ta)
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-72-4
Package / Case	TO-206AF, TO-72-4 Metal Can
