Name: 3N163 TO-72 4L
Brand: Linear Integrated Systems, Inc.
SKU: 3N163 TO-72 4L
Price: 9.27 USD
Availability: InStock

REF: 3N163 TO-72 4L Linear Integrated Systems, Inc.

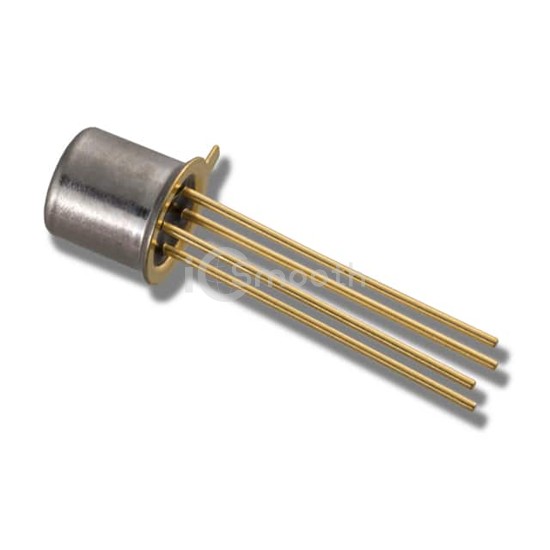

3N163 TO-72 4L

Linear Integrated Systems, Inc.

P-CHANNEL, SINGLE ENHANCEMENT MO

3N163 TO-72 4L is a Transistors - FETs, MOSFETs - Single manufactured by Linear Integrated Systems, Inc.. P-CHANNEL, SINGLE ENHANCEMENT MO. Key specifications: mounting type Through Hole, package / case TO-206AF, TO-72-4 Metal Can.

Datasheet Request a Quote

In Stock: 641

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	50mA
Drive Voltage (Max Rds On, Min Rds On)	20V
Rds On (Max) @ Id, Vgs	250Ohm @ 100µA, 20V
Vgs(th) (Max) @ Id	5V @ 10µA
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	-6.5V
Input Capacitance (Ciss) (Max) @ Vds	3.5 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	375mW
Operating Temperature	-
Mounting Type	Through Hole
Supplier Device Package	TO-72-4
Package / Case	TO-206AF, TO-72-4 Metal Can
