Name: RS2259XTSS16
Brand: Runic Technology
SKU: RS2259XTSS16
Price: 2.63 USD
Availability: InStock

REF: RS2259XTSS16 Runic Technology

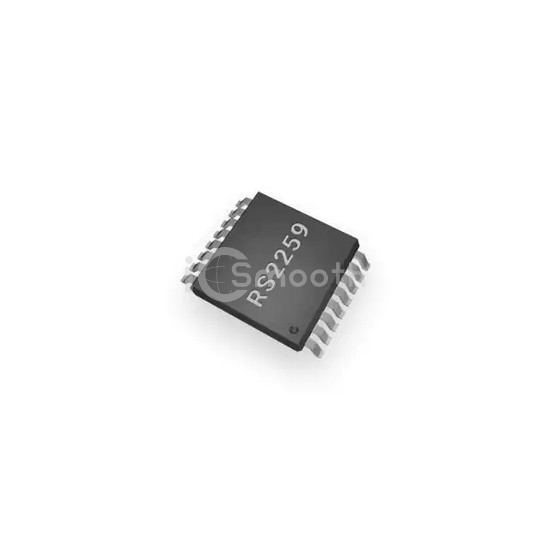

RS2259XTSS16

IC SWITCH QUAD SPST 16TSSOP

RS2259XTSS16 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Runic Technology. IC SWITCH QUAD SPST 16TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 16-TSSOP (0.173", 4.40mm Width), number of circuits 4.

Datasheet Request a Quote

In Stock: 3,740

Tiered Pricing USD

1+ $2.6300 —

10+ $1.9600 -25%

25+ $1.7924 -32%

100+ $1.6078 -39%

250+ $1.5198 -42%

500+ $1.4667 -44%

1,000+ $1.4230 -46% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPST
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	4
On-State Resistance (Max)	1Ohm
Channel-to-Channel Matching (ΔRon)	40mOhm (Typ)
Voltage - Supply, Single (V+)	1.8V ~ 5.5V
Voltage - Supply, Dual (V±)	1.8V ~ 5.5V
Switch Time (Ton, Toff) (Max)	50ns (Typ), 15ns (Typ)

-3db Bandwidth	30MHz
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	80pF, 80pF
Current - Leakage (IS(off)) (Max)	1µA
Crosstalk	-
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package	16-TSSOP
