Name: RS2255XN
Brand: Runic Technology
SKU: RS2255XN
Price: 0.49 USD
Availability: InStock

REF: RS2255XN Runic Technology

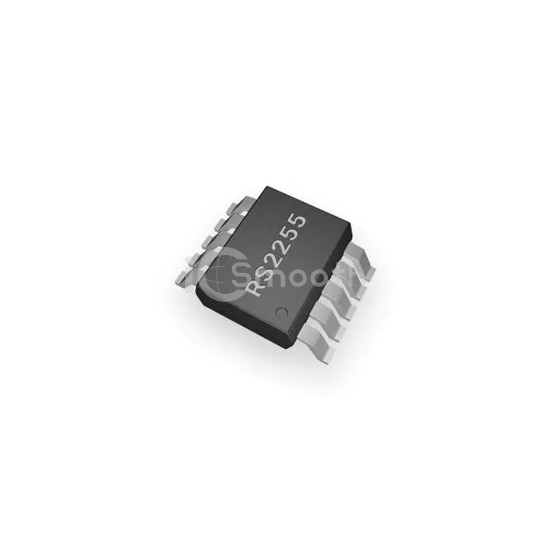

RS2255XN

IC MUX/DEMUX 4X1 10MSOP

RS2255XN is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Runic Technology. IC MUX/DEMUX 4X1 10MSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 10-TFSOP, 10-MSOP (0.118", 3.00mm Width), number of circuits 1.

Datasheet Request a Quote

In Stock: 3,688

Tiered Pricing USD

1+ $0.4900 —

10+ $0.3460 -29%

25+ $0.3088 -37%

100+ $0.2683 -45%

250+ $0.2489 -49%

500+ $0.2373 -52%

1,000+ $0.2277 -54% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SP4T
Multiplexer/Demultiplexer Circuit	4:1
Number of Circuits	1
On-State Resistance (Max)	30Ohm
Channel-to-Channel Matching (ΔRon)	1Ohm (Typ)
Voltage - Supply, Single (V+)	2.5V ~ 5.5V
Voltage - Supply, Dual (V±)	2.5V ~ 5.5V
Switch Time (Ton, Toff) (Max)	90ns (Typ), 70ns (Typ)

-3db Bandwidth	180MHz
Charge Injection	6pC
Channel Capacitance (CS(off), CD(off))	12.7pF
Current - Leakage (IS(off)) (Max)	100nA
Crosstalk	-110dB @ 1MHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package	10-MSOP
