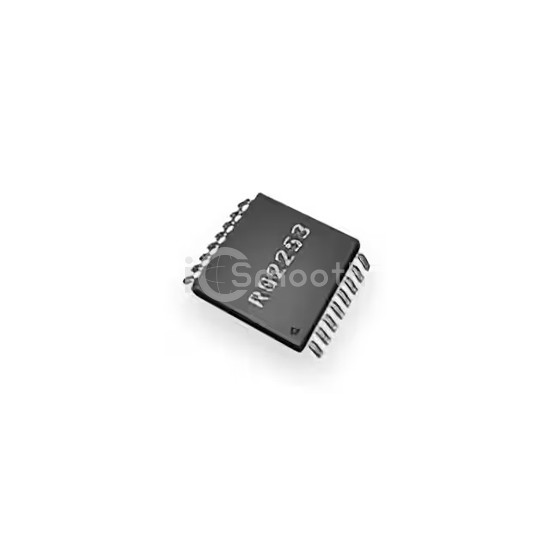

Name: RS2253XTSS16
Brand: Runic Technology
SKU: RS2253XTSS16
Price: 0.33 USD
Availability: InStock

REF: RS2253XTSS16 Runic Technology

RS2253XTSS16

IC MUX/DEMUX TRIPLE 2X1 16TSSOP

RS2253XTSS16 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Runic Technology. IC MUX/DEMUX TRIPLE 2X1 16TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 16-TSSOP (0.173", 4.40mm Width), number of circuits 3.

Datasheet Request a Quote

In Stock: 3,000

Tiered Pricing USD

1+ $0.3300 —

10+ $0.2290 -31%

25+ $0.2032 -38%

100+ $0.1751 -47%

250+ $0.1617 -51%

500+ $0.1536 -53%

1,000+ $0.1469 -55% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	3
On-State Resistance (Max)	65Ohm
Channel-to-Channel Matching (ΔRon)	1.5Ohm (Typ)
Voltage - Supply, Single (V+)	2.5V ~ 5.5V
Voltage - Supply, Dual (V±)	2.5V ~ 5.5V
Switch Time (Ton, Toff) (Max)	90ns (Typ), 70ns (Typ)

-3db Bandwidth	180MHz
Charge Injection	6pC
Channel Capacitance (CS(off), CD(off))	12.7pF
Current - Leakage (IS(off)) (Max)	100nA
Crosstalk	-110dB @ 1MHz
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package	16-TSSOP
