Name: RS2101XC6
Brand: Runic Technology
SKU: RS2101XC6
Price: 0.39 USD
Availability: InStock

REF: RS2101XC6 Runic Technology

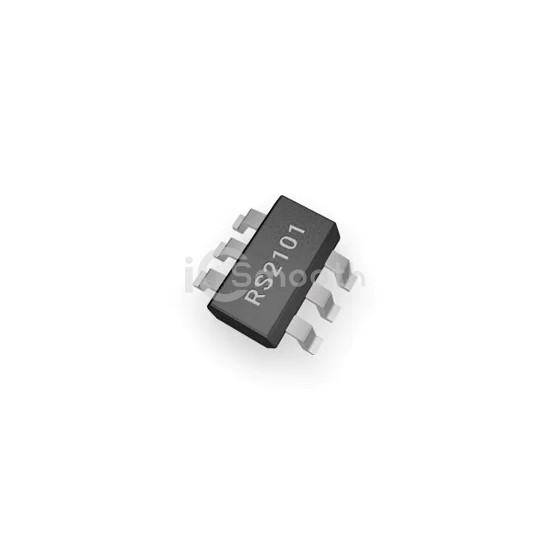

RS2101XC6

IC SWITCH SPDT SC70-6

RS2101XC6 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Runic Technology. IC SWITCH SPDT SC70-6. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 6-TSSOP, SC-88, SOT-363, number of circuits 1.

Datasheet Request a Quote

In Stock: 4,328

Tiered Pricing USD

1+ $0.3900 —

10+ $0.2720 -30%

25+ $0.2420 -38%

100+ $0.2093 -46%

250+ $0.1936 -50%

500+ $0.1842 -53%

1,000+ $0.1764 -55% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	1
On-State Resistance (Max)	4Ohm
Channel-to-Channel Matching (ΔRon)	100mOhm (Typ)
Voltage - Supply, Single (V+)	1.8V ~ 5.5V
Voltage - Supply, Dual (V±)	1.8V ~ 5.5V
Switch Time (Ton, Toff) (Max)	29ns (Typ), 17ns (Typ)

-3db Bandwidth	120MHz
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	15pF
Current - Leakage (IS(off)) (Max)	1µA
Crosstalk	-
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	6-TSSOP, SC-88, SOT-363
Supplier Device Package	SC-70-6 (SOT-363)
