Name: RS2058XN
Brand: Runic Technology
SKU: RS2058XN
Price: 0.63 USD
Availability: InStock

REF: RS2058XN Runic Technology

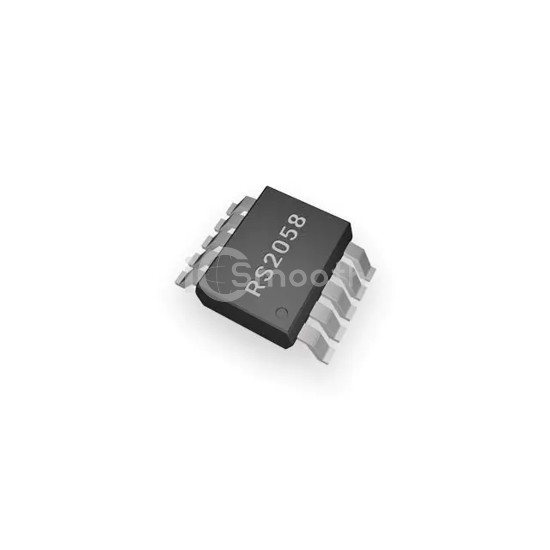

RS2058XN

IC SWITCH DUAL SPDT 10MSOP

RS2058XN is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Runic Technology. IC SWITCH DUAL SPDT 10MSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 10-TFSOP, 10-MSOP (0.118", 3.00mm Width), number of circuits 2.

Datasheet Request a Quote

In Stock: 3,957

Tiered Pricing USD

1+ $0.6300 —

10+ $0.4490 -29%

25+ $0.4024 -36%

100+ $0.3513 -44%

250+ $0.3270 -48%

500+ $0.3123 -50%

1,000+ $0.3060 -51% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	8Ohm
Channel-to-Channel Matching (ΔRon)	150mOhm (Typ)
Voltage - Supply, Single (V+)	1.8V ~ 5.5V
Voltage - Supply, Dual (V±)	1.8V ~ 5.5V
Switch Time (Ton, Toff) (Max)	30ns (Typ), 25ns (Typ)

-3db Bandwidth	300MHz
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	5pF
Current - Leakage (IS(off)) (Max)	1µA
Crosstalk	-
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package	10-MSOP
