Name: VMO1600-02P
Brand: IXYS
SKU: VMO1600-02P
Availability: InStock

REF: VMO1600-02P IXYS

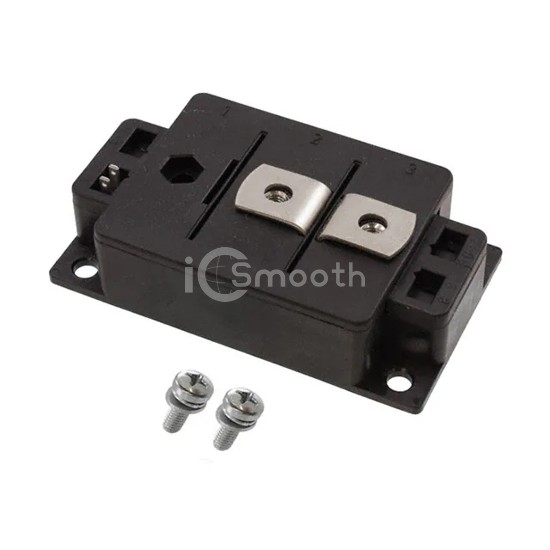

VMO1600-02P

MOSFET N-CH 200V 1900A Y3-LI

VMO1600-02P is a Transistors - FETs, MOSFETs - Single manufactured by IXYS. MOSFET N-CH 200V 1900A Y3-LI. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case Y3-Li.

Datasheet Request a Quote

In Stock: 8,062

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	200 V
Current - Continuous Drain (Id) @ 25°C	1900A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	1.7mOhm @ 1600A, 10V
Vgs(th) (Max) @ Id	5V @ 5mA
Gate Charge (Qg) (Max) @ Vgs	2900 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	-
FET Feature	-
Power Dissipation (Max)	-
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Supplier Device Package	Y3-Li
Package / Case	Y3-Li
