MMIX1X100N60B3H1

In Stock: 7,161

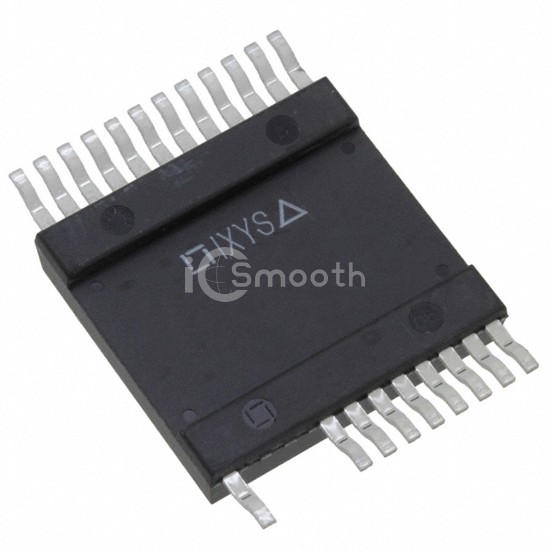

MMIX1X100N60B3H1 - IXYS - Transistors - IGBTs - Single
REF: MMIX1X100N60B3H1 IXYS
MMIX1X100N60B3H1

IXYS

IGBT 600V 145A 400W SMPD

MMIX1X100N60B3H1 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 600V 145A 400W SMPD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 24-PowerSMD, 21 Leads, current - collector (ic) (max) 145 A.

Datasheet Request a Quote

In Stock: 7,161

Specifications

17 parameters
Product StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)600 V
Current - Collector (Ic) (Max)145 A
Current - Collector Pulsed (Icm)440 A
Vce(on) (Max) @ Vge, Ic1.8V @ 15V, 70A
Power - Max400 W
Switching Energy1.9mJ (on), 2mJ (off)
Input TypeStandard
Gate Charge143 nC
Td (on/off) @ 25°C30ns/120ns
Test Condition360V, 70A, 2Ohm, 15V
Reverse Recovery Time (trr)140 ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case24-PowerSMD, 21 Leads
Supplier Device Package24-SMPD
