IXBH20N360HV

In Stock: 6,268
IXBH20N360HV - IXYS - Transistors - IGBTs - Single
REF: IXBH20N360HV IXYS
IXBH20N360HV

IXYS

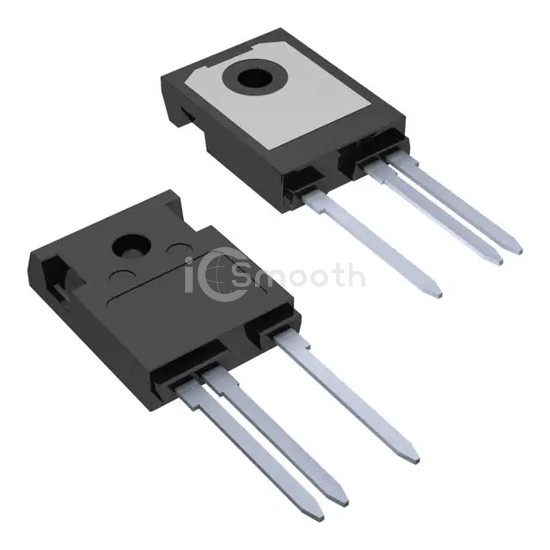

IGBT 3600V 70A TO-247HV

IXBH20N360HV is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 3600V 70A TO-247HV. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3 Variant, current - collector (ic) (max) 70 A.

Datasheet Request a Quote

In Stock: 6,268

Specifications

17 parameters
Product StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)3600 V
Current - Collector (Ic) (Max)70 A
Current - Collector Pulsed (Icm)220 A
Vce(on) (Max) @ Vge, Ic3.4V @ 15V, 20A
Power - Max430 W
Switching Energy15.5mJ (on), 4.3mJ (off)
Input TypeStandard
Gate Charge110 nC
Td (on/off) @ 25°C18ns/238ns
Test Condition1500V, 20A, 10Ohm, 15V
Reverse Recovery Time (trr)1.7 µs
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3 Variant
Supplier Device PackageTO-247HV
