Name: MMIX1T600N04T2
Brand: IXYS
SKU: MMIX1T600N04T2
Price: 38.61 USD
Availability: InStock

REF: MMIX1T600N04T2 IXYS

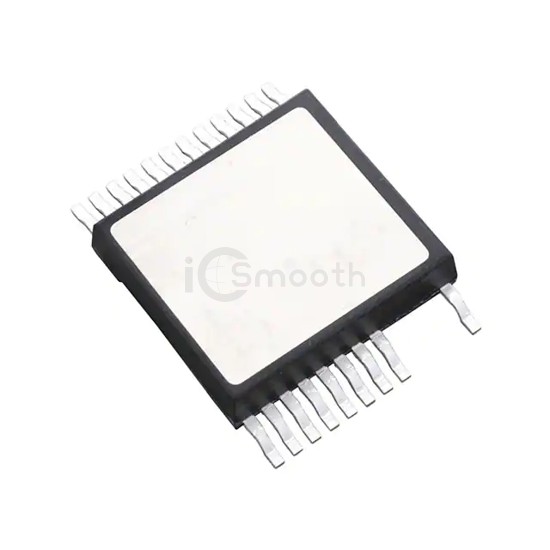

MMIX1T600N04T2

MOSFET N-CH 40V 600A 24SMPD

MMIX1T600N04T2 is a Transistors - FETs, MOSFETs - Single manufactured by IXYS. MOSFET N-CH 40V 600A 24SMPD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 24-PowerSMD, 21 Leads.

Datasheet Request a Quote

In Stock: 1,733

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	600A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	1.3mOhm @ 100A, 10V
Vgs(th) (Max) @ Id	3.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	590 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	40000 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	830W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	24-SMPD
Package / Case	24-PowerSMD, 21 Leads
