MMIX1F520N075T2

In Stock: 8,637

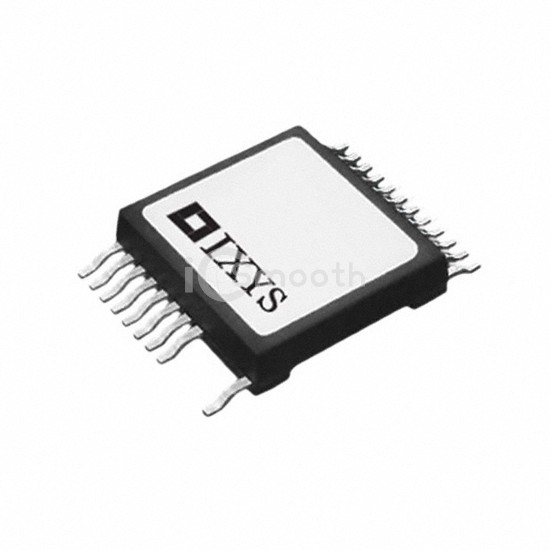

MMIX1F520N075T2 - IXYS - Transistors - FETs, MOSFETs - Single
REF: MMIX1F520N075T2 IXYS
MMIX1F520N075T2

IXYS

MOSFET N-CH 75V 500A 24SMPD

MMIX1F520N075T2 is a Transistors - FETs, MOSFETs - Single manufactured by IXYS. MOSFET N-CH 75V 500A 24SMPD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 24-PowerSMD, 21 Leads.

Datasheet Request a Quote

In Stock: 8,637

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)75 V
Current - Continuous Drain (Id) @ 25°C500A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs1.6mOhm @ 100A, 10V
Vgs(th) (Max) @ Id5V @ 8mA
Gate Charge (Qg) (Max) @ Vgs545 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds41000 pF @ 25 V
FET Feature-
Power Dissipation (Max)830W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package24-SMPD
Package / Case24-PowerSMD, 21 Leads
