Name: MMIX1F44N100Q3
Brand: IXYS
SKU: MMIX1F44N100Q3
Price: 53.68 USD
Availability: InStock

REF: MMIX1F44N100Q3 IXYS

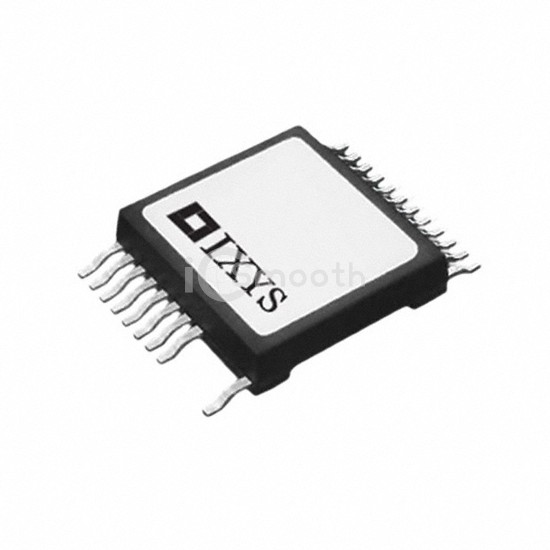

MMIX1F44N100Q3

MOSFET N-CH 1000V 30A 24SMPD

MMIX1F44N100Q3 is a Transistors - FETs, MOSFETs - Single manufactured by IXYS. MOSFET N-CH 1000V 30A 24SMPD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 24-PowerSMD, 21 Leads.

Datasheet Request a Quote

In Stock: 6,868

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	1000 V
Current - Continuous Drain (Id) @ 25°C	30A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	245mOhm @ 22A, 10V
Vgs(th) (Max) @ Id	6.5V @ 8mA
Gate Charge (Qg) (Max) @ Vgs	264 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	13600 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	694W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	24-SMPD
Package / Case	24-PowerSMD, 21 Leads
