MDNA360UB2200PTED

In Stock: 17

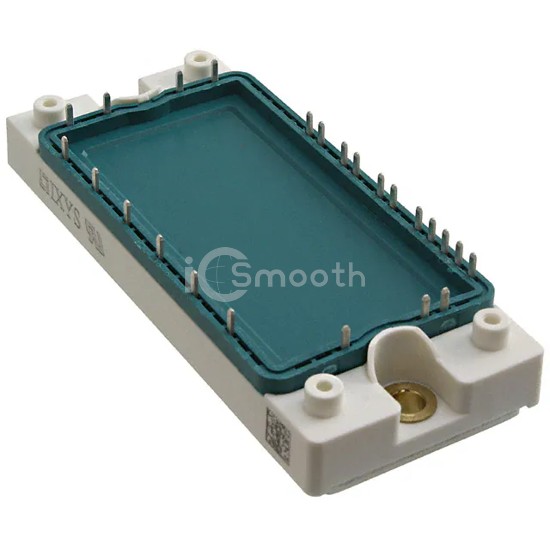

MDNA360UB2200PTED - IXYS - Diodes - Bridge Rectifiers
REF: MDNA360UB2200PTED IXYS
MDNA360UB2200PTED

IXYS

BIPOLARMODULE-RECTIFIER+BRAKE E2

MDNA360UB2200PTED is a Diodes - Bridge Rectifiers manufactured by IXYS. BIPOLARMODULE-RECTIFIER+BRAKE E2. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case E2.

Datasheet Request a Quote

In Stock: 17

Tiered Pricing USD
1+ $180.6800 —
28+ $166.3404 -8% BEST

Specifications

11 parameters
Product StatusActive
Diode TypeThree Phase (Braking)
TechnologyStandard
Voltage - Peak Reverse (Max)1.7 kV
Current - Average Rectified (Io)360 A
Voltage - Forward (Vf) (Max) @ If1.8 V @ 360 A
Current - Reverse Leakage @ Vr200 µA @ 1.7 kV
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseE2
Supplier Device PackageE2
