IXYX40N450HV

In Stock: 383

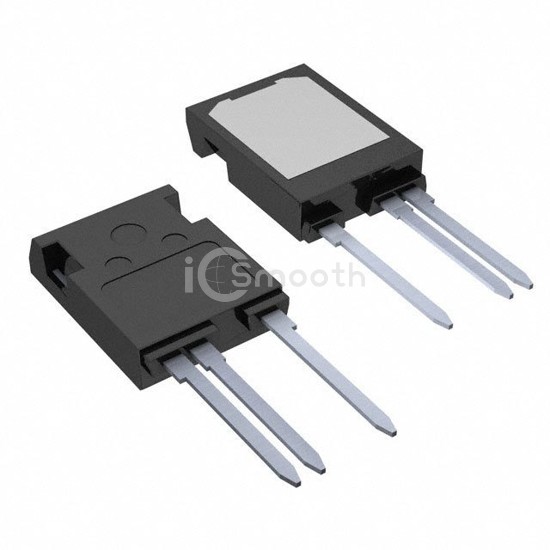

IXYX40N450HV - IXYS - Transistors - IGBTs - Single
REF: IXYX40N450HV IXYS
IXYX40N450HV

IXYS

IGBT

IXYX40N450HV is a Transistors - IGBTs - Single manufactured by IXYS. IGBT. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3 Variant, current - collector (ic) (max) 95 A.

Datasheet Request a Quote

In Stock: 383

Specifications

17 parameters
Product StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)4500 V
Current - Collector (Ic) (Max)95 A
Current - Collector Pulsed (Icm)350 A
Vce(on) (Max) @ Vge, Ic3.9V @ 15V, 40A
Power - Max660 W
Switching Energy-
Input TypeStandard
Gate Charge170 nC
Td (on/off) @ 25°C36ns/110ns
Test Condition960V, 40A, 2Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3 Variant
Supplier Device PackageTO-247PLUS-HV
