Name: IXYT40N120A4HV
Brand: IXYS
SKU: IXYT40N120A4HV
Price: 10.41 USD
Availability: InStock

REF: IXYT40N120A4HV IXYS

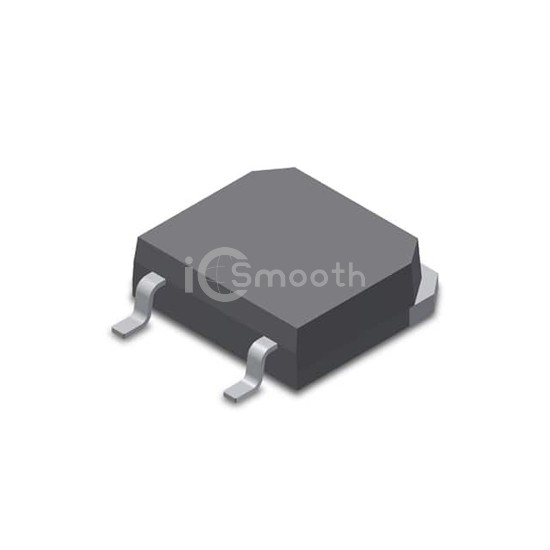

IXYT40N120A4HV

IGBT 1200V 40A GNX4 XPT TO-268HV

IXYT40N120A4HV is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 1200V 40A GNX4 XPT TO-268HV. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-268-3, D³Pak (2 Leads + Tab), TO-268AA, current - collector (ic) (max) 140 A.

Datasheet Request a Quote

In Stock: 6,666

Specifications

17 parameters

Product Status	Active
IGBT Type	PT
Voltage - Collector Emitter Breakdown (Max)	1200 V
Current - Collector (Ic) (Max)	140 A
Current - Collector Pulsed (Icm)	275 A
Vce(on) (Max) @ Vge, Ic	1.8V @ 15V, 32A
Power - Max	600 W
Switching Energy	2.3mJ (on), 3.75mJ (off)
Input Type	Standard

Gate Charge	90 nC
Td (on/off) @ 25°C	22ns/204ns
Test Condition	600V, 32A, 5Ohm, 15V
Reverse Recovery Time (trr)	-
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
Supplier Device Package	TO-268HV (IXYT)
