IXYP60N65A5

In Stock: 100

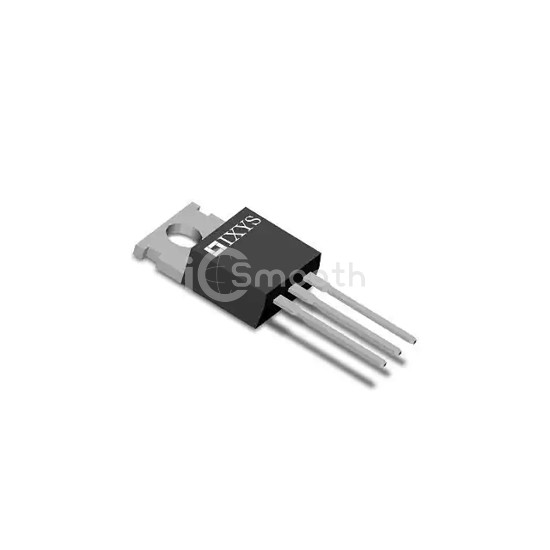

IXYP60N65A5 - IXYS - Transistors - IGBTs - Single
REF: IXYP60N65A5 IXYS
IXYP60N65A5

IXYS

IGBT 650V 60A X5 XPT TO-220

IXYP60N65A5 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 650V 60A X5 XPT TO-220. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-220-3, current - collector (ic) (max) 134 A.

Datasheet Request a Quote

In Stock: 100

Specifications

17 parameters
Product StatusActive
IGBT TypePT
Voltage - Collector Emitter Breakdown (Max)650 V
Current - Collector (Ic) (Max)134 A
Current - Collector Pulsed (Icm)260 A
Vce(on) (Max) @ Vge, Ic1.35V @ 15V, 36A
Power - Max395 W
Switching Energy600µJ (on), 1.45mJ (off)
Input TypeStandard
Gate Charge128 nC
Td (on/off) @ 25°C28ns/230ns
Test Condition400V, 36A, 5Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-220-3
Supplier Device PackageTO-220 (IXYP)
