IXYN50N170CV1

In Stock: 8,507

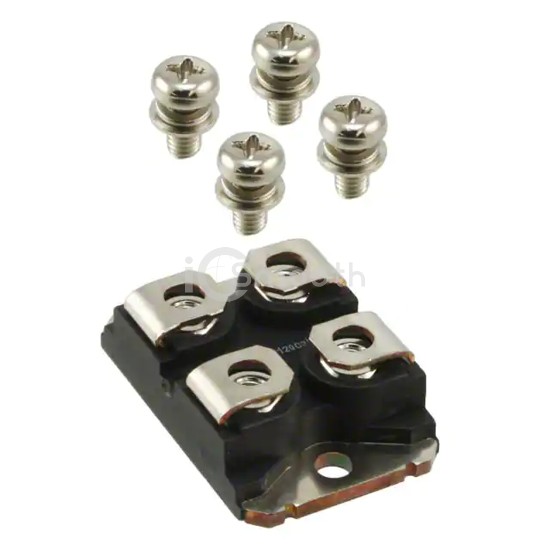

IXYN50N170CV1 - IXYS - Transistors - IGBTs - Single
REF: IXYN50N170CV1 IXYS
IXYN50N170CV1

IXYS

IGBT 1700V 120A SOT227B

IXYN50N170CV1 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 1700V 120A SOT227B. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 175°C (TJ), package / case SOT-227-4, miniBLOC, current - collector (ic) (max) 120 A.

Datasheet Request a Quote

In Stock: 8,507

Specifications

17 parameters
Product StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)1700 V
Current - Collector (Ic) (Max)120 A
Current - Collector Pulsed (Icm)485 A
Vce(on) (Max) @ Vge, Ic3.7V @ 15V, 50A
Power - Max880 W
Switching Energy8.7mJ (on), 5.6mJ (off)
Input TypeStandard
Gate Charge260 nC
Td (on/off) @ 25°C22ns/236ns
Test Condition850V, 50A, 1Ohm, 15V
Reverse Recovery Time (trr)255 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeChassis Mount
Package / CaseSOT-227-4, miniBLOC
Supplier Device PackageSOT-227B
