IXYN30N170CV1

In Stock: 626

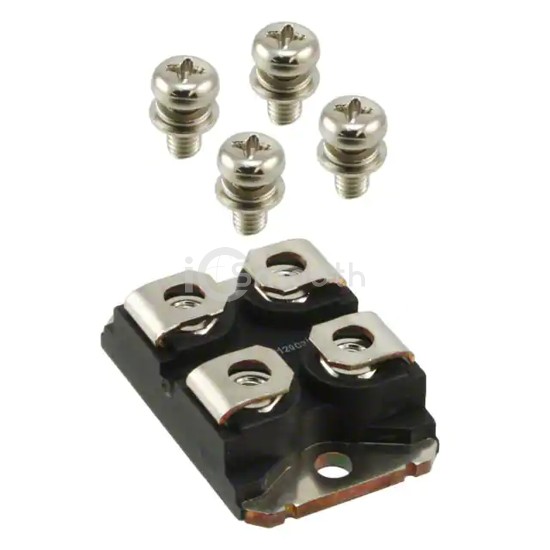

IXYN30N170CV1 - IXYS - Transistors - IGBTs - Single
REF: IXYN30N170CV1 IXYS
IXYN30N170CV1

IXYS

1700V/85A HIGH VOLTAGE XPT IGBT

IXYN30N170CV1 is a Transistors - IGBTs - Single manufactured by IXYS. 1700V/85A HIGH VOLTAGE XPT IGBT. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 175°C (TJ), package / case SOT-227-4, miniBLOC, current - collector (ic) (max) 88 A.

Datasheet Request a Quote

In Stock: 626

Specifications

17 parameters
Product StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)1700 V
Current - Collector (Ic) (Max)88 A
Current - Collector Pulsed (Icm)275 A
Vce(on) (Max) @ Vge, Ic3.7V @ 15V, 30A
Power - Max680 W
Switching Energy5.9mJ (on), 3.3mJ (off)
Input TypeStandard
Gate Charge140 nC
Td (on/off) @ 25°C28ns/150ns
Test Condition850V, 30A, 2.7Ohm, 15V
Reverse Recovery Time (trr)160 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeChassis Mount
Package / CaseSOT-227-4, miniBLOC
Supplier Device PackageSOT-227B
