IXYN110N120A4

In Stock: 5,789

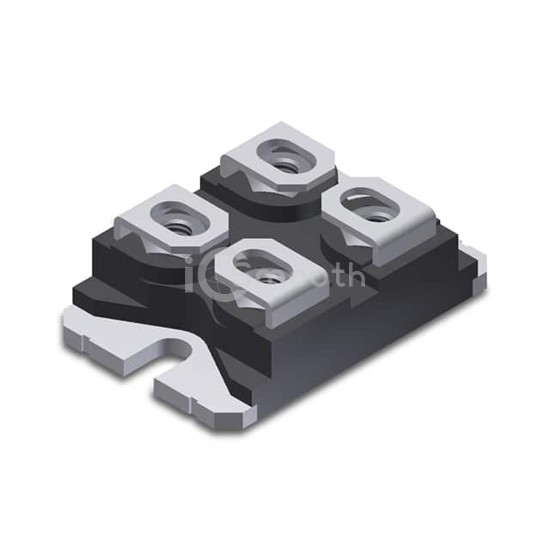

IXYN110N120A4 - IXYS - Transistors - IGBTs - Single
REF: IXYN110N120A4 IXYS
IXYN110N120A4

IXYS

IGBT 1200V 110A GNX4 XPT SOT227B

IXYN110N120A4 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 1200V 110A GNX4 XPT SOT227B. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 175°C (TJ), package / case SOT-227-4, miniBLOC, current - collector (ic) (max) 275 A.

Datasheet Request a Quote

In Stock: 5,789

Specifications

17 parameters
Product StatusActive
IGBT TypePT
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)275 A
Current - Collector Pulsed (Icm)950 A
Vce(on) (Max) @ Vge, Ic1.8V @ 15V, 110A
Power - Max830 W
Switching Energy2.5mJ (on), 8.4mJ (off)
Input TypeStandard
Gate Charge305 nC
Td (on/off) @ 25°C42ns/550ns
Test Condition600V, 50A, 2Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeChassis Mount
Package / CaseSOT-227-4, miniBLOC
Supplier Device PackageSOT-227B
