IXYL60N450

In Stock: 8

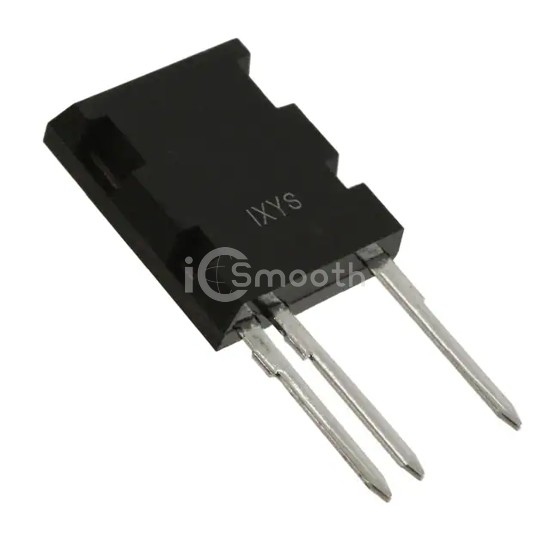

IXYL60N450 - IXYS - Transistors - IGBTs - Single
REF: IXYL60N450 IXYS
IXYL60N450

IXYS

IGBT 4500V 90A 417W I5-PAK

IXYL60N450 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 4500V 90A 417W I5-PAK. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case ISOPLUSi5-Pak™, current - collector (ic) (max) 90 A.

Datasheet Request a Quote

In Stock: 8

Specifications

17 parameters
Product StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)4500 V
Current - Collector (Ic) (Max)90 A
Current - Collector Pulsed (Icm)680 A
Vce(on) (Max) @ Vge, Ic3.3V @ 15V, 60A
Power - Max417 W
Switching Energy-
Input TypeStandard
Gate Charge366 nC
Td (on/off) @ 25°C55ns/450ns
Test Condition960V, 60A, 4.7Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseISOPLUSi5-Pak™
Supplier Device PackageISOPLUSi5-Pak™
