IXYL40N250CV1

In Stock: 4,070

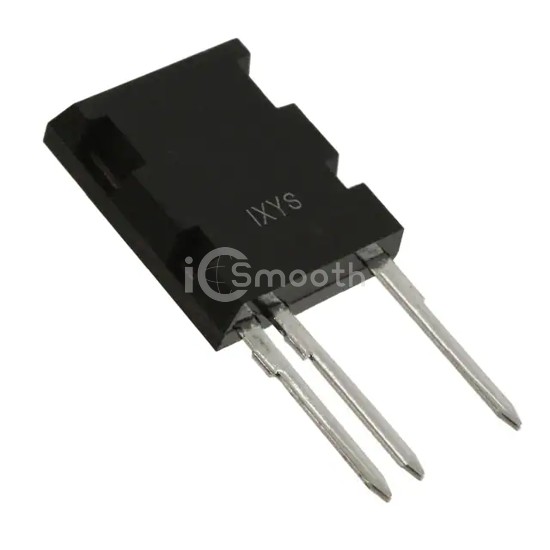

IXYL40N250CV1 - IXYS - Transistors - IGBTs - Single
REF: IXYL40N250CV1 IXYS
IXYL40N250CV1

IXYS

IGBT 2.5KV 70A ISOPLUSI5-PAK

IXYL40N250CV1 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 2.5KV 70A ISOPLUSI5-PAK. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case ISOPLUSi5-Pak™, current - collector (ic) (max) 70 A.

Datasheet Request a Quote

In Stock: 4,070

Specifications

17 parameters
Product StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)2500 V
Current - Collector (Ic) (Max)70 A
Current - Collector Pulsed (Icm)400 A
Vce(on) (Max) @ Vge, Ic4V @ 15V, 40A
Power - Max577 W
Switching Energy11.7mJ (on), 6.9mJ (off)
Input TypeStandard
Gate Charge270 nC
Td (on/off) @ 25°C21ns/200ns
Test Condition1250V, 40A, 1Ohm, 15V
Reverse Recovery Time (trr)210 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseISOPLUSi5-Pak™
Supplier Device PackageISOPLUSi5-Pak™
