IXYK110N120C4

In Stock: 4,474

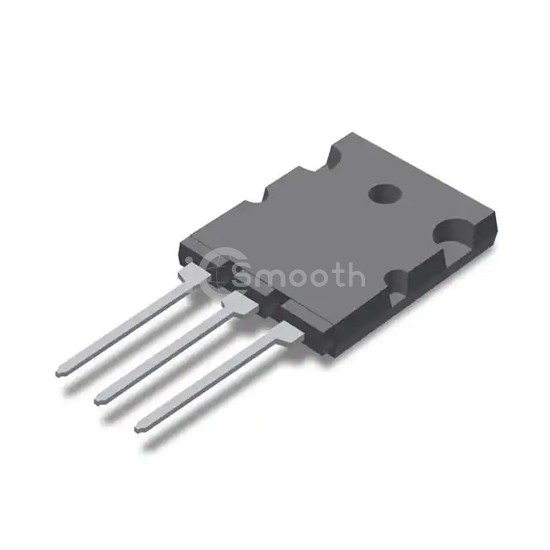

IXYK110N120C4 - IXYS - Transistors - IGBTs - Single
REF: IXYK110N120C4 IXYS
IXYK110N120C4

IXYS

IGBT 1200V 110A GEN4 XPT TO264

IXYK110N120C4 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 1200V 110A GEN4 XPT TO264. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-264-3, TO-264AA, current - collector (ic) (max) 310 A.

Datasheet Request a Quote

In Stock: 4,474

Specifications

17 parameters
Product StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)310 A
Current - Collector Pulsed (Icm)740 A
Vce(on) (Max) @ Vge, Ic2.4V @ 15V, 110A
Power - Max1360 W
Switching Energy3.6mJ (on), 1.9mJ (off)
Input TypeStandard
Gate Charge330 nC
Td (on/off) @ 25°C40ns/320ns
Test Condition600V, 50A, 2Ohm, 15V
Reverse Recovery Time (trr)48 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-264-3, TO-264AA
Supplier Device PackagePLUS264™
