IXYK110N120B4

In Stock: 6,805

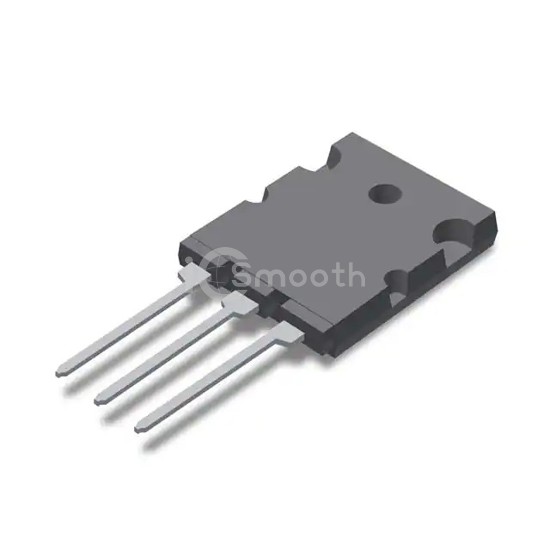

IXYK110N120B4 - IXYS - Transistors - IGBTs - Single
REF: IXYK110N120B4 IXYS
IXYK110N120B4

IXYS

IGBT 1200V 110A GEN4 XPT TO264

IXYK110N120B4 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 1200V 110A GEN4 XPT TO264. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-264-3, TO-264AA, current - collector (ic) (max) 340 A.

Datasheet Request a Quote

In Stock: 6,805

Specifications

17 parameters
Product StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)340 A
Current - Collector Pulsed (Icm)800 A
Vce(on) (Max) @ Vge, Ic2.1V @ 15V, 110A
Power - Max1360 W
Switching Energy3.6mJ (on), 3.85mJ (off)
Input TypeStandard
Gate Charge340 nC
Td (on/off) @ 25°C45ns/390ns
Test Condition600V, 50A, 2Ohm, 15V
Reverse Recovery Time (trr)50 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-264-3, TO-264AA
Supplier Device PackageTO-264 (IXYK)
