IXYK110N120A4

In Stock: 6,844

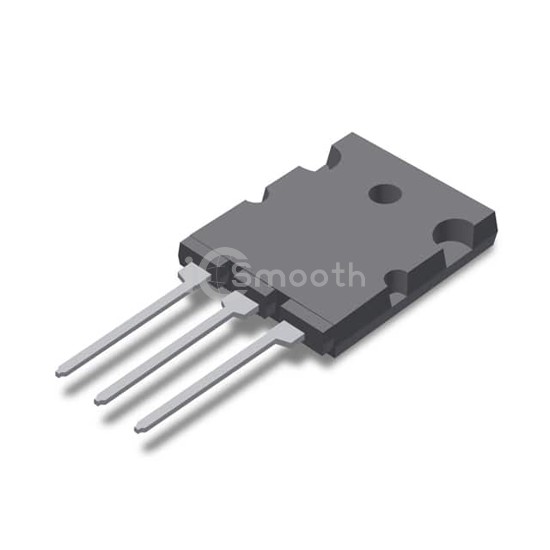

IXYK110N120A4 - IXYS - Transistors - IGBTs - Single
REF: IXYK110N120A4 IXYS
IXYK110N120A4

IXYS

IGBT 1200V 110A GENX4 XPT TO-264

IXYK110N120A4 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 1200V 110A GENX4 XPT TO-264. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-264-3, TO-264AA, current - collector (ic) (max) 375 A.

Datasheet Request a Quote

In Stock: 6,844

Specifications

17 parameters
Product StatusActive
IGBT TypePT
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)375 A
Current - Collector Pulsed (Icm)900 A
Vce(on) (Max) @ Vge, Ic1.8V @ 15V, 110A
Power - Max1360 W
Switching Energy2.5mJ (on), 8.4mJ (off)
Input TypeStandard
Gate Charge305 nC
Td (on/off) @ 25°C42ns/550ns
Test Condition600V, 50A, 1.5Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-264-3, TO-264AA
Supplier Device PackageTO-264 (IXYK)
