IXYJ20N120C3D1

In Stock: 3,063

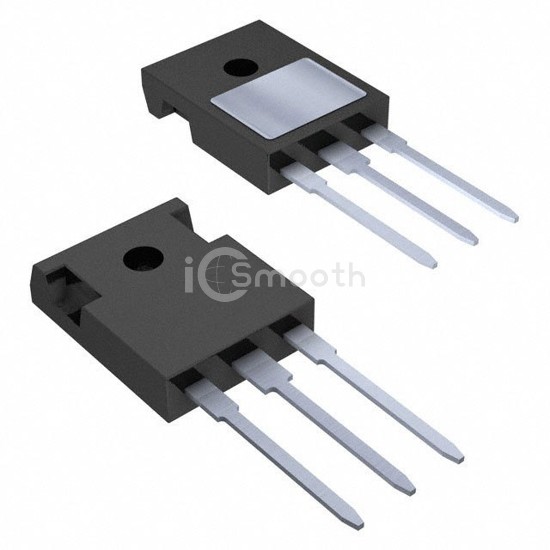

IXYJ20N120C3D1 - IXYS - Transistors - IGBTs - Single
REF: IXYJ20N120C3D1 IXYS
IXYJ20N120C3D1

IXYS

IGBT 1200V 21A 105W TO247

IXYJ20N120C3D1 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 1200V 21A 105W TO247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3, current - collector (ic) (max) 21 A.

Datasheet Request a Quote

In Stock: 3,063

Specifications

17 parameters
Product StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)21 A
Current - Collector Pulsed (Icm)84 A
Vce(on) (Max) @ Vge, Ic3.4V @ 15V, 20A
Power - Max105 W
Switching Energy1.3mJ (on), 500µJ (off)
Input TypeStandard
Gate Charge53 nC
Td (on/off) @ 25°C20ns/90ns
Test Condition600V, 20A, 10Ohm, 15V
Reverse Recovery Time (trr)195 ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageISO247
