IXYH8N250CHV

In Stock: 8,440

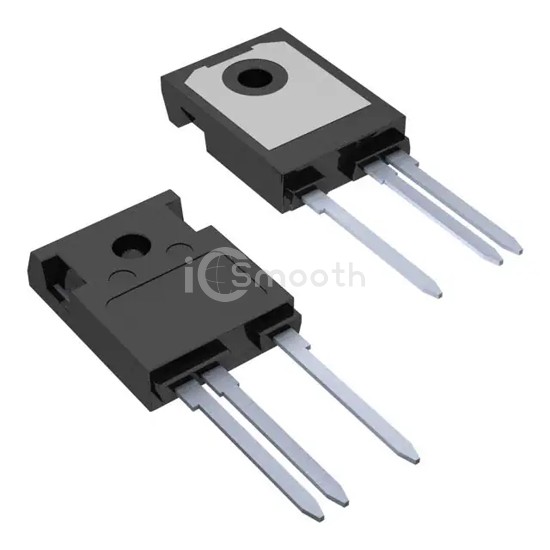

IXYH8N250CHV - IXYS - Transistors - IGBTs - Single
REF: IXYH8N250CHV IXYS
IXYH8N250CHV

IXYS

IGBT

IXYH8N250CHV is a Transistors - IGBTs - Single manufactured by IXYS. IGBT. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3 Variant, current - collector (ic) (max) 29 A.

Datasheet Request a Quote

In Stock: 8,440

Specifications

17 parameters
Product StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)2500 V
Current - Collector (Ic) (Max)29 A
Current - Collector Pulsed (Icm)70 A
Vce(on) (Max) @ Vge, Ic4V @ 15V, 8A
Power - Max280 W
Switching Energy2.6mJ (on), 1.07mJ (off)
Input TypeStandard
Gate Charge45 nC
Td (on/off) @ 25°C11ns/180ns
Test Condition1250V, 8A, 15Ohm, 15V
Reverse Recovery Time (trr)5 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3 Variant
Supplier Device PackageTO-247HV
