IXYH85N120A4

In Stock: 4,582

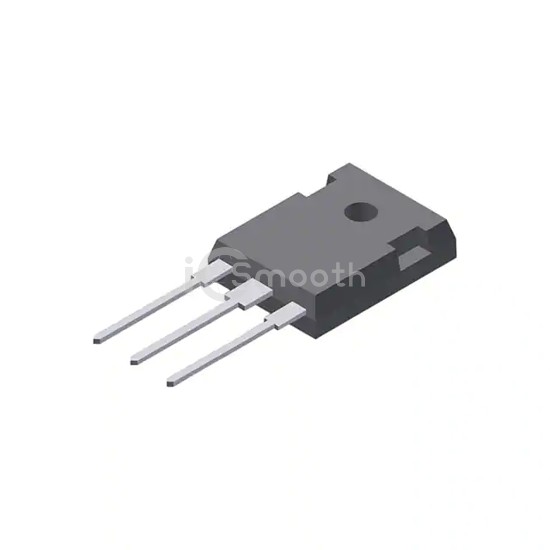

IXYH85N120A4 - IXYS - Transistors - IGBTs - Single
REF: IXYH85N120A4 IXYS
IXYH85N120A4

IXYS

IGBT GENX4 1200V 85A TO247

IXYH85N120A4 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT GENX4 1200V 85A TO247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 300 A.

Datasheet Request a Quote

In Stock: 4,582

Specifications

17 parameters
Product StatusActive
IGBT TypePT
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)300 A
Current - Collector Pulsed (Icm)520 A
Vce(on) (Max) @ Vge, Ic1.8V @ 15V, 85A
Power - Max1150 W
Switching Energy4.9mJ (on), 8.3mJ (off)
Input TypeStandard
Gate Charge200 nC
Td (on/off) @ 25°C40ns/400ns
Test Condition600V, 60A, 5Ohm, 15V
Reverse Recovery Time (trr)40 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247 (IXTH)
