IXYH55N120C4

In Stock: 2,929
IXYH55N120C4 - IXYS - Transistors - IGBTs - Single
REF: IXYH55N120C4 IXYS
IXYH55N120C4

IXYS

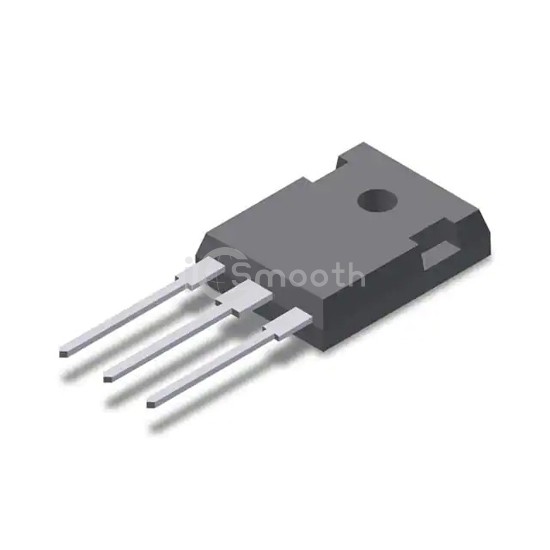

IGBT 1200V 55A GEN4 XPT TO247

IXYH55N120C4 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 1200V 55A GEN4 XPT TO247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 140 A.

Datasheet Request a Quote

In Stock: 2,929

Specifications

17 parameters
Product StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)140 A
Current - Collector Pulsed (Icm)290 A
Vce(on) (Max) @ Vge, Ic2.5V @ 15V, 55A
Power - Max650 W
Switching Energy3.5mJ (on), 1.34mJ (off)
Input TypeStandard
Gate Charge114 nC
Td (on/off) @ 25°C20ns/180ns
Test Condition600V, 40A, 5Ohm, 15V
Reverse Recovery Time (trr)50 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247 (IXTH)
