IXYH40N65B3D1

In Stock: 2,051

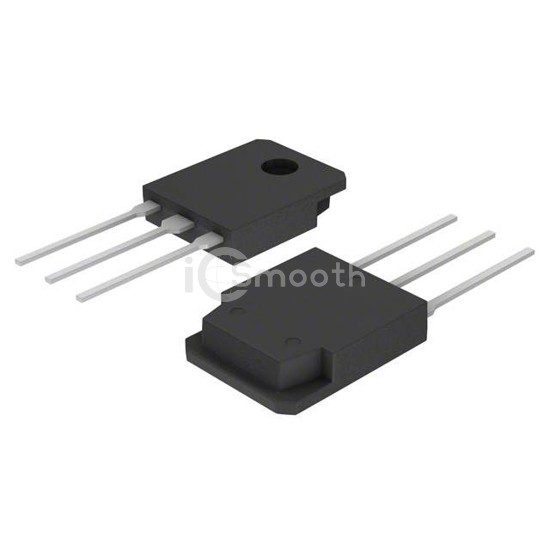

IXYH40N65B3D1 - IXYS - Transistors - IGBTs - Single
REF: IXYH40N65B3D1 IXYS
IXYH40N65B3D1

IXYS

IGBT

IXYH40N65B3D1 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 86 A.

Datasheet Request a Quote

In Stock: 2,051

Specifications

17 parameters
Product StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)650 V
Current - Collector (Ic) (Max)86 A
Current - Collector Pulsed (Icm)195 A
Vce(on) (Max) @ Vge, Ic2V @ 15V, 40A
Power - Max300 W
Switching Energy800µJ (on), 1.25mJ (off)
Input TypeStandard
Gate Charge68 nC
Td (on/off) @ 25°C20ns/140ns
Test Condition400V, 30A, 10Ohm, 15V
Reverse Recovery Time (trr)37 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247 (IXTH)
