IXYH40N120A4

In Stock: 8,259

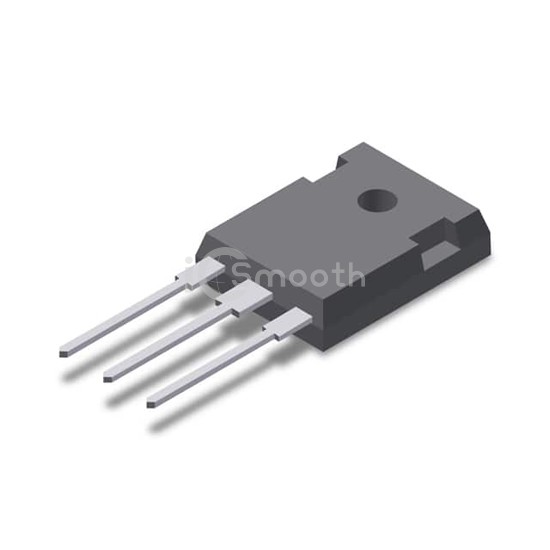

IXYH40N120A4 - IXYS - Transistors - IGBTs - Single
REF: IXYH40N120A4 IXYS
IXYH40N120A4

IXYS

IGBT 1200V 40A GENX4 XPT TO-247

IXYH40N120A4 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 1200V 40A GENX4 XPT TO-247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 140 A.

Datasheet Request a Quote

In Stock: 8,259

Specifications

17 parameters
Product StatusActive
IGBT TypePT
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)140 A
Current - Collector Pulsed (Icm)275 A
Vce(on) (Max) @ Vge, Ic1.8V @ 15V, 32A
Power - Max600 W
Switching Energy2.3mJ (on), 3.75mJ (off)
Input TypeStandard
Gate Charge90 nC
Td (on/off) @ 25°C22ns/204ns
Test Condition600V, 32A, 5Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247 (IXYH)
