IXYH30N450HV

In Stock: 1,373

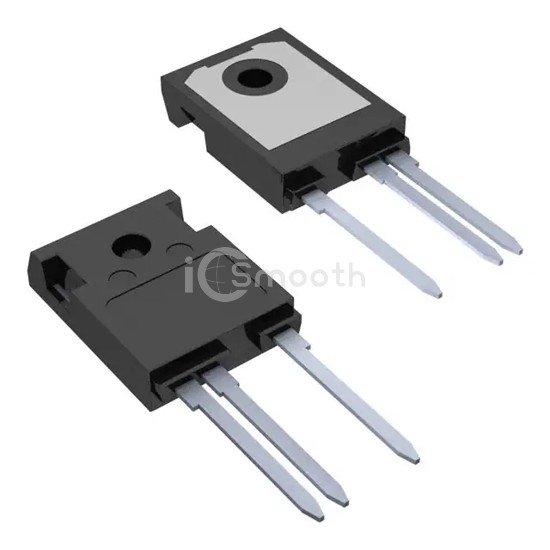

IXYH30N450HV - IXYS - Transistors - IGBTs - Single
REF: IXYH30N450HV IXYS
IXYH30N450HV

IXYS

IGBT 4500V 30A TO-247HV

IXYH30N450HV is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 4500V 30A TO-247HV. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3 Variant, current - collector (ic) (max) 60 A.

Datasheet Request a Quote

In Stock: 1,373

Specifications

17 parameters
Product StatusActive
IGBT TypePT
Voltage - Collector Emitter Breakdown (Max)4500 V
Current - Collector (Ic) (Max)60 A
Current - Collector Pulsed (Icm)200 A
Vce(on) (Max) @ Vge, Ic3.9V @ 15V, 30A
Power - Max430 W
Switching Energy-
Input TypeStandard
Gate Charge88 nC
Td (on/off) @ 25°C-
Test Condition960V, 30A, 10Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3 Variant
Supplier Device PackageTO-247HV
