IXYH25N250CHV

In Stock: 1,187

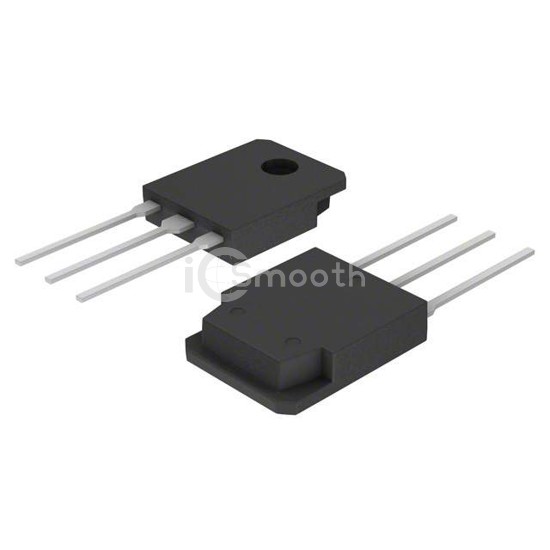

IXYH25N250CHV - IXYS - Transistors - IGBTs - Single
REF: IXYH25N250CHV IXYS
IXYH25N250CHV

IXYS

IGBT 2500V 235A TO-247HV

IXYH25N250CHV is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 2500V 235A TO-247HV. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 95 A.

Datasheet Request a Quote

In Stock: 1,187

Specifications

17 parameters
Product StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)2500 V
Current - Collector (Ic) (Max)95 A
Current - Collector Pulsed (Icm)235 A
Vce(on) (Max) @ Vge, Ic4V @ 15V, 25A
Power - Max937 W
Switching Energy8.3mJ (on), 7.3mJ (off)
Input TypeStandard
Gate Charge147 nC
Td (on/off) @ 25°C15ns/230ns
Test Condition1250V, 25A, 5Ohm, 15V
Reverse Recovery Time (trr)34 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247 (IXTH)
