IXYH24N170CV1

In Stock: 2,015

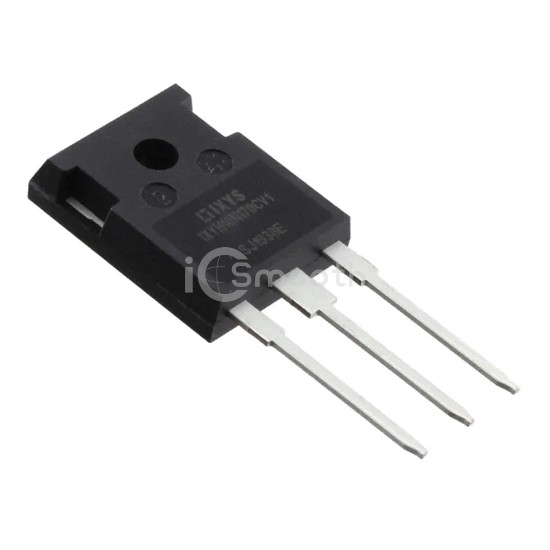

IXYH24N170CV1 - IXYS - Transistors - IGBTs - Single
REF: IXYH24N170CV1 IXYS
IXYH24N170CV1

IXYS

IGBT 1.7KV 58A TO247

IXYH24N170CV1 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 1.7KV 58A TO247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 58 A.

Request a Quote

In Stock: 2,015

Specifications

17 parameters
Product StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)1700 V
Current - Collector (Ic) (Max)58 A
Current - Collector Pulsed (Icm)140 A
Vce(on) (Max) @ Vge, Ic4V @ 15V, 24A
Power - Max500 W
Switching Energy3.6mJ (on), 1.76mJ (off)
Input TypeStandard
Gate Charge96 nC
Td (on/off) @ 25°C16ns/155ns
Test Condition850V, 24A, 5Ohm, 15V
Reverse Recovery Time (trr)170 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247 (IXYH)
