IXYH16N170CV1

In Stock: 8,076

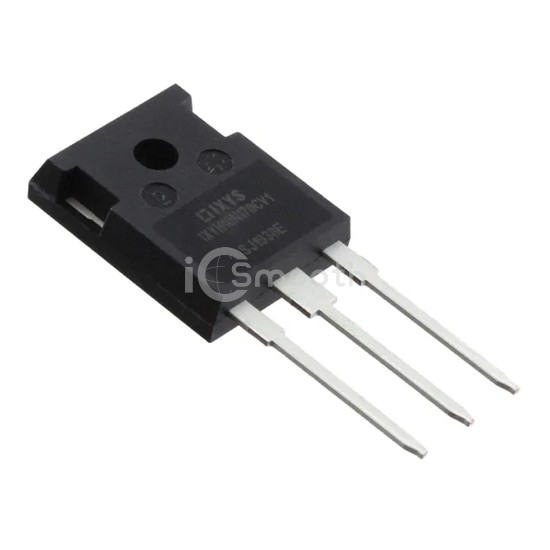

IXYH16N170CV1 - IXYS - Transistors - IGBTs - Single
REF: IXYH16N170CV1 IXYS
IXYH16N170CV1

IXYS

IGBT 1.7KV 40A TO247

IXYH16N170CV1 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 1.7KV 40A TO247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 40 A.

Datasheet Request a Quote

In Stock: 8,076

Specifications

17 parameters
Product StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)1700 V
Current - Collector (Ic) (Max)40 A
Current - Collector Pulsed (Icm)100 A
Vce(on) (Max) @ Vge, Ic3.8V @ 15V, 16A
Power - Max310 W
Switching Energy2.1mJ (on), 1.5mJ (off)
Input TypeStandard
Gate Charge56 nC
Td (on/off) @ 25°C11ns/140ns
Test Condition850V, 16A, 10Ohm, 15V
Reverse Recovery Time (trr)150 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247 (IXYH)
