IXYH10N170C

In Stock: 2,953

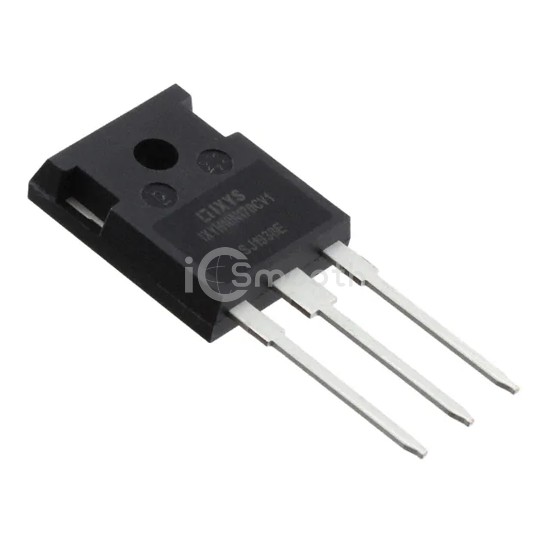

IXYH10N170C - IXYS - Transistors - IGBTs - Single
REF: IXYH10N170C IXYS
IXYH10N170C

IXYS

IGBT 1.7KV 36A TO247

IXYH10N170C is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 1.7KV 36A TO247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 36 A.

Datasheet Request a Quote

In Stock: 2,953

Specifications

17 parameters
Product StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)1700 V
Current - Collector (Ic) (Max)36 A
Current - Collector Pulsed (Icm)84 A
Vce(on) (Max) @ Vge, Ic3.8V @ 15V, 10A
Power - Max280 W
Switching Energy1.4mJ (on), 700µJ (off)
Input TypeStandard
Gate Charge46 nC
Td (on/off) @ 25°C14ns/130ns
Test Condition850V, 10A, 10Ohm, 15V
Reverse Recovery Time (trr)17 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247 (IXYH)
