IXYH100N65A3

In Stock: 4,579

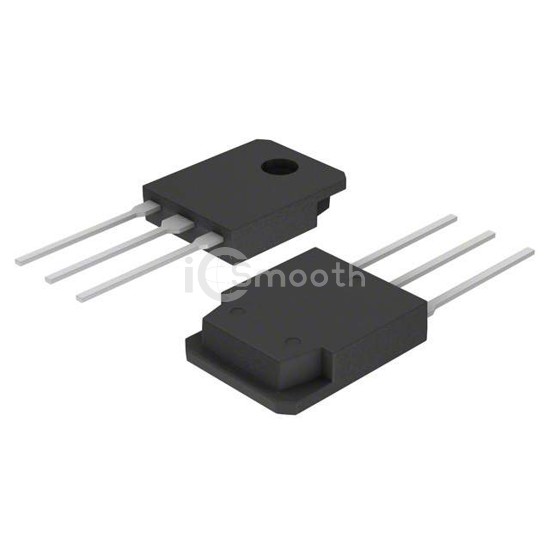

IXYH100N65A3 - IXYS - Transistors - IGBTs - Single
REF: IXYH100N65A3 IXYS
IXYH100N65A3

IXYS

IGBT

IXYH100N65A3 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 240 A.

Datasheet Request a Quote

In Stock: 4,579

Specifications

17 parameters
Product StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)650 V
Current - Collector (Ic) (Max)240 A
Current - Collector Pulsed (Icm)480 A
Vce(on) (Max) @ Vge, Ic1.8V @ 15V, 70A
Power - Max470 W
Switching Energy3.15mJ (on), 2.2mJ (off)
Input TypeStandard
Gate Charge178 nC
Td (on/off) @ 25°C24ns/174ns
Test Condition400V, 50A, 2Ohm, 15V
Reverse Recovery Time (trr)64 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247 (IXTH)
