IXYF30N450

In Stock: 75

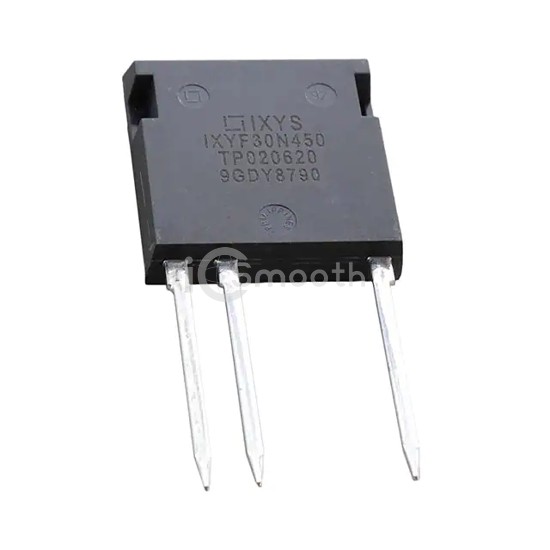

IXYF30N450 - IXYS - Transistors - IGBTs - Single
REF: IXYF30N450 IXYS
IXYF30N450

IXYS

IGBT 4500V 23A 230W ISOPLUS

IXYF30N450 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 4500V 23A 230W ISOPLUS. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case ISOPLUSi5-Pak™, current - collector (ic) (max) 23 A.

Datasheet Request a Quote

In Stock: 75

Specifications

17 parameters
Product StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)4500 V
Current - Collector (Ic) (Max)23 A
Current - Collector Pulsed (Icm)190 A
Vce(on) (Max) @ Vge, Ic3.9V @ 15V, 30A
Power - Max230 W
Switching Energy-
Input TypeStandard
Gate Charge88 nC
Td (on/off) @ 25°C38ns/168ns
Test Condition960V, 30A, 15Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseISOPLUSi5-Pak™
Supplier Device PackageISOPLUS i4-PAC™
