IXYA20N120C3HV

In Stock: 6,183

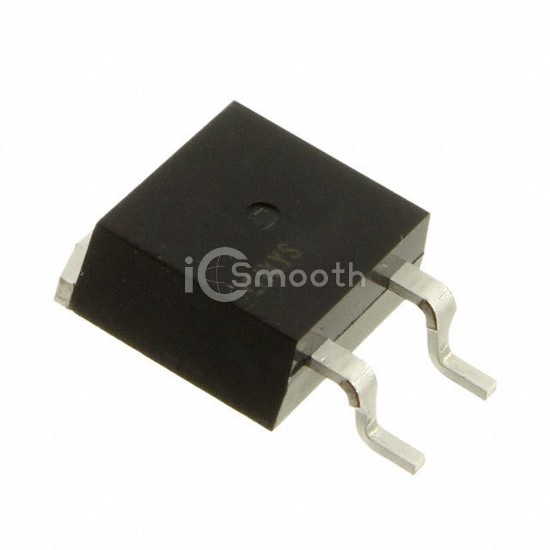

IXYA20N120C3HV - IXYS - Transistors - IGBTs - Single
REF: IXYA20N120C3HV IXYS
IXYA20N120C3HV

IXYS

IGBT

IXYA20N120C3HV is a Transistors - IGBTs - Single manufactured by IXYS. IGBT. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB, current - collector (ic) (max) 40 A.

Datasheet Request a Quote

In Stock: 6,183

Specifications

17 parameters
Product StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)40 A
Current - Collector Pulsed (Icm)96 A
Vce(on) (Max) @ Vge, Ic3.4V @ 15V, 20A
Power - Max278 W
Switching Energy1.3mJ (on), 1mJ (off)
Input TypeStandard
Gate Charge53 nC
Td (on/off) @ 25°C20ns/90ns
Test Condition600V, 20A, 10Ohm, 15V
Reverse Recovery Time (trr)29 ns
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device PackageTO-263HV
