Name: IXYA20N120A4HV
Brand: IXYS
SKU: IXYA20N120A4HV
Price: 10.61 USD
Availability: InStock

REF: IXYA20N120A4HV IXYS

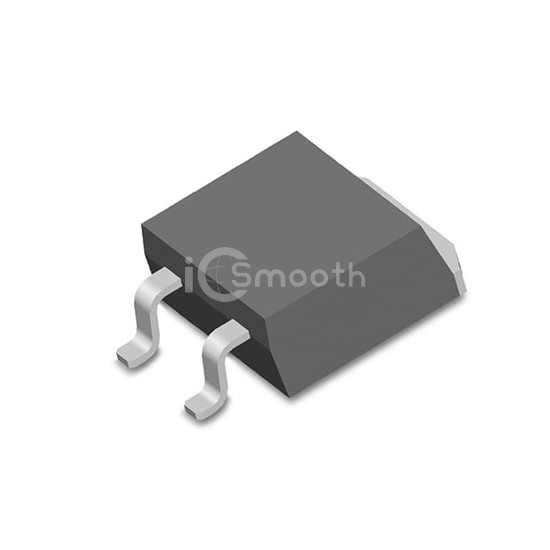

IXYA20N120A4HV

DISC IGBT XPT-GENX4 TO-263D2

IXYA20N120A4HV is a Transistors - IGBTs - Single manufactured by IXYS. DISC IGBT XPT-GENX4 TO-263D2. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB, current - collector (ic) (max) 80 A.

Datasheet Request a Quote

In Stock: 1,093

Specifications

17 parameters

Product Status	Active
IGBT Type	PT
Voltage - Collector Emitter Breakdown (Max)	1200 V
Current - Collector (Ic) (Max)	80 A
Current - Collector Pulsed (Icm)	135 A
Vce(on) (Max) @ Vge, Ic	1.9V @ 15V, 20A
Power - Max	375 W
Switching Energy	3.6mJ (on), 2.75mJ (off)
Input Type	Standard

Gate Charge	46 nC
Td (on/off) @ 25°C	12ns/275ns
Test Condition	800mV, 20A, 10Ohm, 15V
Reverse Recovery Time (trr)	54 ns
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package	TO-263HV
